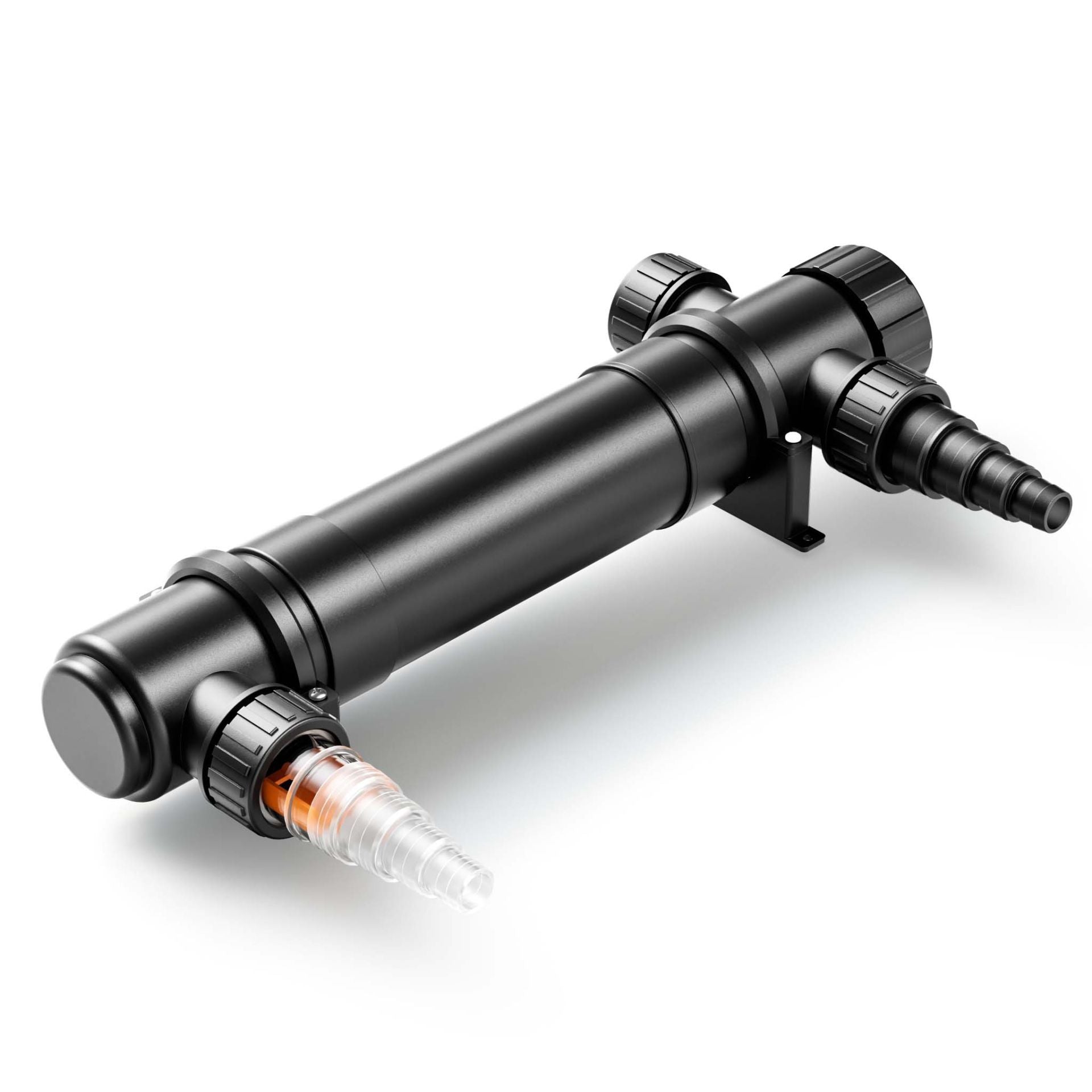

SunSun CUV-136 Pond Clarifier – 36W UVC Lamp

The SunSun CUV-136 Pond Clarifier is a high-efficiency UV water clarifier designed to combat algae, bacteria, and pathogens in garden ponds. With a maximum flow capacity of 4500 L/h and a 36W UVC lamp, this clarifier keeps your pond water crystal clear while protecting the health of your fish and aquatic plants.

Key Features of SunSun CUV-136 Pond Clarifier

✅ Crystal-Clear Water – Effectively eliminates green water caused by algae.
✅ Powerful UVC Technology – 36W UV lamp controls algae, bacteria & mold.
✅ Fish & Plant Safe – No chemicals, only natural UVC disinfection.
✅ Pathogen Protection – Reduces harmful microorganisms, ensuring healthier fish.
✅ Easy Installation – Universal connectors make setup quick and simple.
✅ Durable & Reliable – Long-lasting quartz sleeve ensures efficiency.

How the SunSun CUV-136 Works

The CUV-136 clarifier uses linear water flow technology to direct pond water past the integrated UVC lamp. The UV-C radiation alters algal proteins, clumping algae cells together so they can be removed easily via mechanical and biological pond filtration.

This process not only clears murky pond water but also supports a healthy biological balance in your pond.

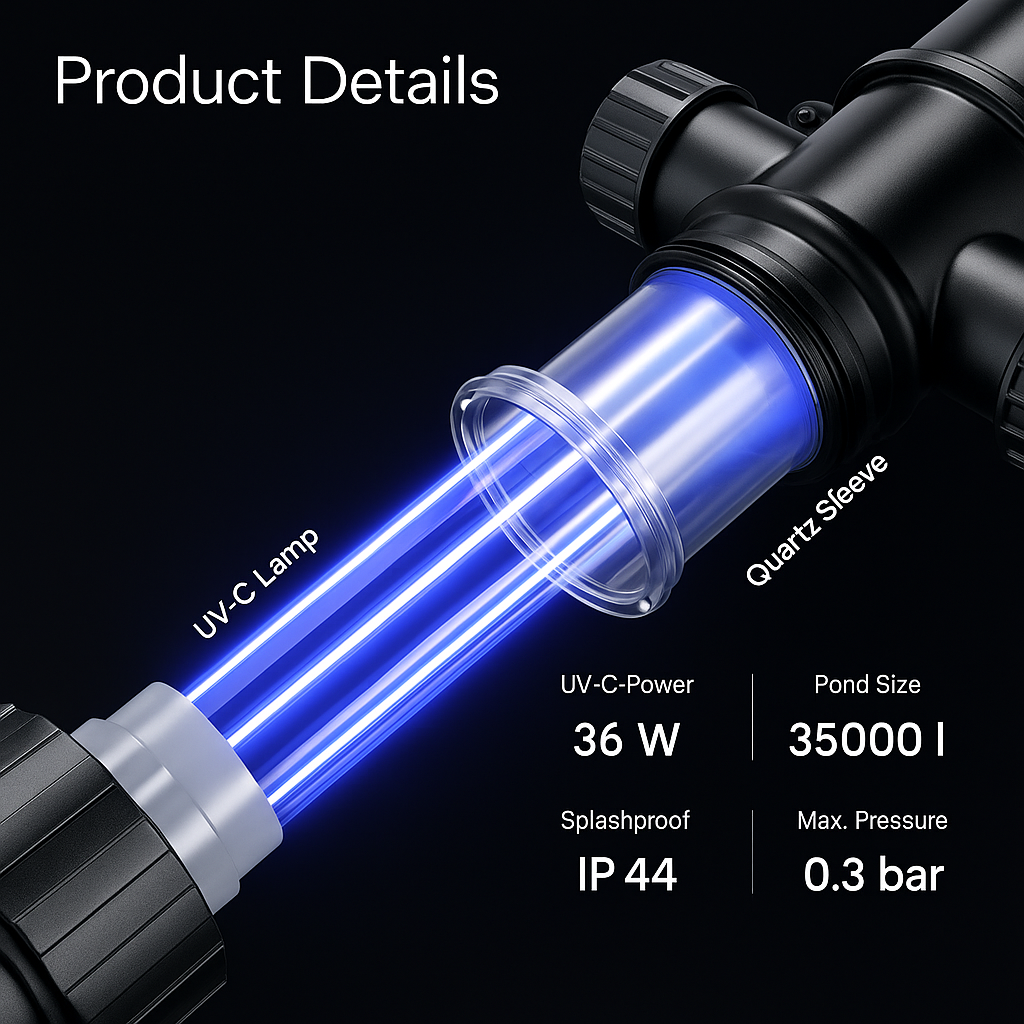

Technical Specifications

• Brand: SunSun
• Model: CUV-136
• Max Flow Rate: 4500 L/h
• UV-C Power: 36W

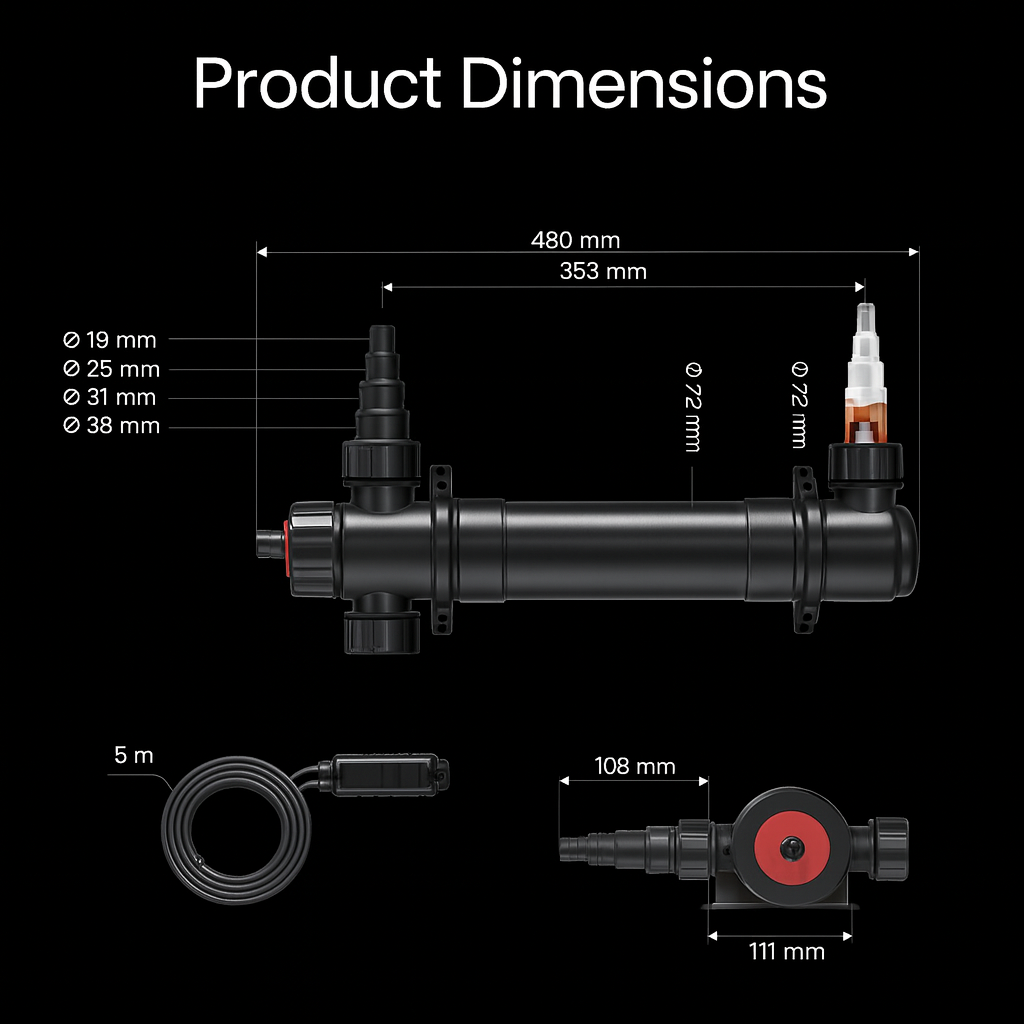

• Connection Sizes: Universal (Ø 19, 25, 31, 38 mm)
• Max Pressure: 0.3 bar
• Cable Length: 5 m
• Protection Class: IP44 (splash-proof)
• Recommended Pond Size: Up to 35,000 liters without fish / 15,000 liters with fish
• Lamp Lifespan: 7,000 – 10,000 hours

Why Choose the CUV-136 Clarifier?

The SunSun CUV-136 is the perfect solution for pond keepers who:

• Struggle with algae blooms under strong sunlight.
• Want to reduce harmful bacteria in koi or garden ponds.
• Prefer a chemical-free method of water clarification.
• Need a reliable clarifier that integrates easily with existing pond pumps & filters.

Installation & Maintenance

• Install all electrical devices at least 2m from the pond, per VDE safety guidelines.
• Clean the quartz glass sleeve regularly for maximum UV penetration.
• Replace the UV-C lamp every 7,000–10,000 hours (approx. once per pond season).

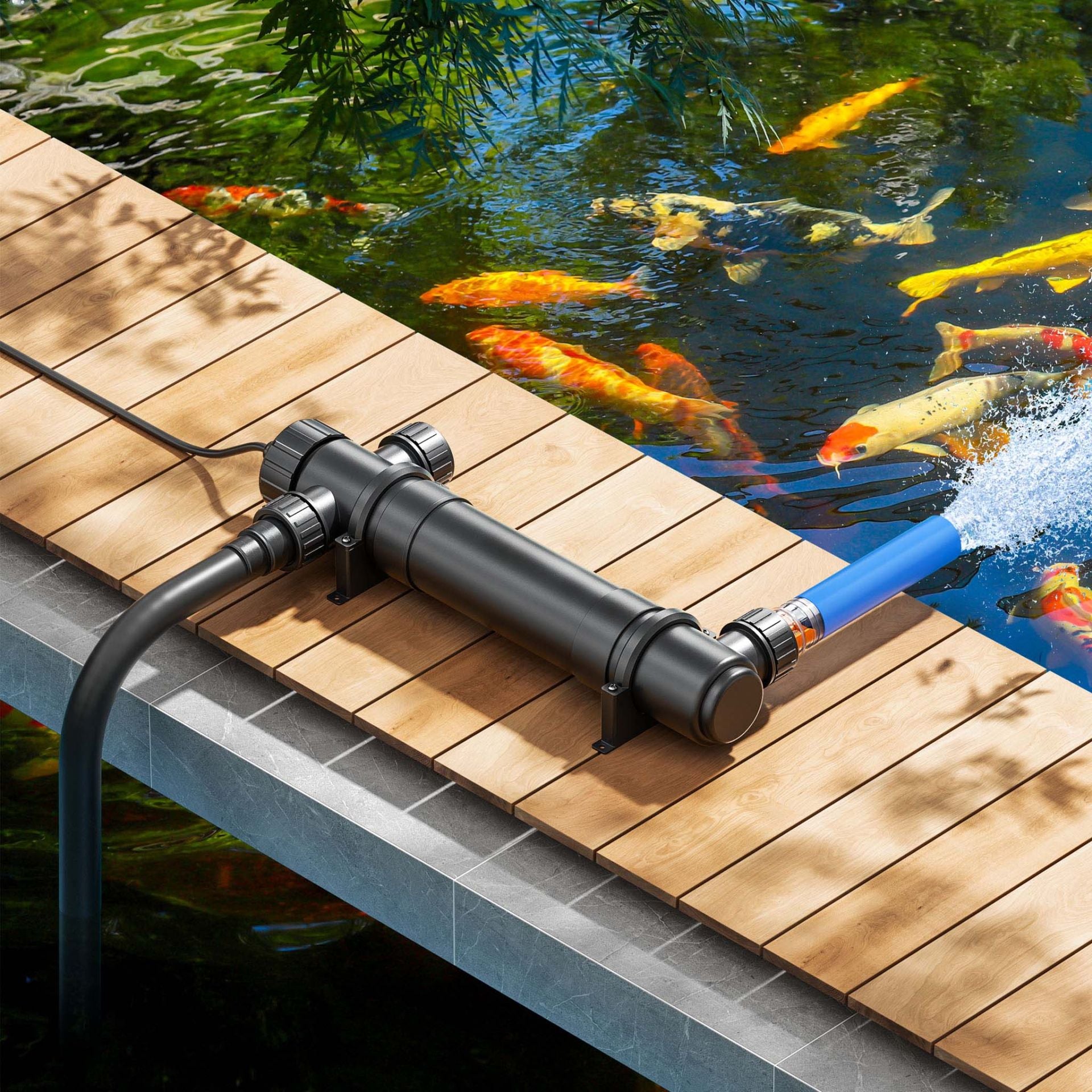

• Easy to install in-line with existing pond pumps and filtration systems.

FAQs – SunSun CUV-136 Pond Clarifier

Q1: What pond size is the CUV-136 suitable for?
👉 Up to 35,000 L without fish or 15,000 L with fish.

Q2: How does it control algae?
👉 The 36W UV lamp kills free-floating algae and pathogens, which are then filtered out.

Q3: Is it safe for koi ponds?
👉 Yes, it’s 100% safe for koi and aquatic plants – no chemicals used.

Q4: How often should the UV lamp be replaced?
👉 Every 7,000–10,000 hours (roughly once per year for optimal results).

Q5: Can the inlet/outlet be reversed?
👉 Yes, the CUV-136 is symmetrically designed, so either side can be used as inlet or outlet.
